220v 380v 45A Portable Induction Heating Furnace For Melting Brass

Henan IRIS Electromechanical Equipment Co., Ltd.
Contact Now

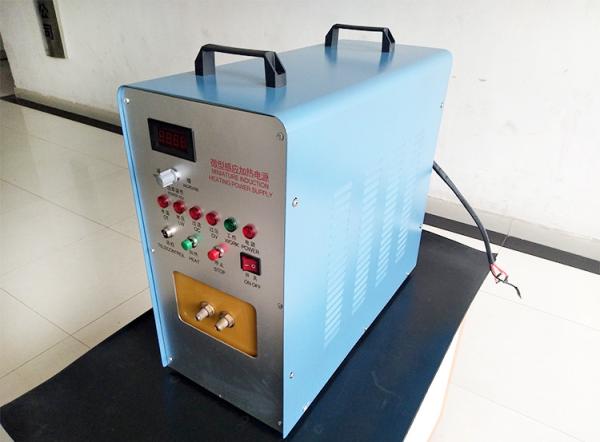

220v 380v 45A Portable Induction Heating Furnace For Melting Brass

Brand Name : IRIS

Model Number : IRIS-HF25

Certification : CE

Place of Origin : China

MOQ : 1set

Price : $1000-2000/set

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 100 sets per month

Delivery Time : 5-8 working days

Packaging Details : wooden box packing

Product name : High frequency induction melting furnace

Application : melting gold silver copper other metal

Power : 25kw

Voltage : 220v/380v

Cooling water : 5L/min

Current : 45A

Visit company : Welcome

Melting time : 5-8mins

Contact Now

Portable high frequency induction melting furnace for melting copper brass gold silver description

1.This furnace is using the IGBT power devices, our electric furnaces are much more integrated and miniaturized . Effective output power could reach 95%,even higher.

2.Using the subminiature MF induction heating power resource, could save15%- 30% power compared with traditional thyristor medium frequency furnace.

3.MF magnetic field has functions of stirring the molten metal . It helps the metal composition uniform.

4.Generally , our engineers will recommend a type of our melting furnace to you based on the job you do .

5.Perfect and complete protection functions, increasing machine’s reliability and stability.

6.No special foundations required, low operating cost , easy to operation.

7.Modular design, ease of maintaining and repairing.

220v 380v 45A Portable Induction Heating Furnace For Melting Brass

Portable high frequency induction melting furnace for melting copper brass gold silver description feature
1.Induction heating melting furnace use crucible high temperature to heat metal.then can melt,refine,casting,etc production.
2.Can melt platinum, rhodium and palladium,gold,silver,copper,steel,aluminium, Activated carbon, gold dust sands, electrolysis mud, gold and silver powder, tin ash tin slag etc.
3.Induction heating melting furnace can melt weight from 0.001KG--500KG per time.melting time from 5-40 minutes. max temperature will be 1500C--2000C.
4.Induction heating melting furnace have fixed type,push out type,auto pouring type,furnace up down moving type.
220v 380v 45A Portable Induction Heating Furnace For Melting Brass

Portable high frequency induction melting furnace for melting copper brass gold silver description heating principle

The flow of high-frequency and high-frequency machine is made of circular or other shape of the heating coil (usually with copper production). A coil which produces changes in the magnetic polarity of the instantaneous beam, the metal object is heated coil placed on the magnetic beam will be heated through the whole object, the object being heated inside the heating current in the opposite direction, there will corresponding large eddy currents. Because of the heated object memory in the resistance, it will have a lot of Joule heat, so that the rapid rise in body temperature itself. Metallic material is heated to achieve for all purposes.

220v 380v 45A Portable Induction Heating Furnace For Melting Brass


Portable high frequency induction melting furnace for melting copper brass gold silver description main model

Model Aluminum Copper Stainless
MF-15KW 3kg 10kg 3kg
MF-25KW 5kg 20kg 5kg
MF-35KW 10kg 30kg 10kg
MF-45KW 18kg 50kg 18kg
MF-70KW 25kg 100kg 25kg
MF-90KW 40kg 120kg 40kg
MF-110KW 50kg 150kg 50kg
MF-160KW 100kg 250kg 100kg

Portable high frequency induction melting furnace for melting copper brass gold silver description packaging&delivery

1. All the goods will be test and packed well before shipping to avoid damage during delivery.

2. Plastic inside,Polyfoam filled,Carton Outside.

3. Usually we send the goods by express delivery such as DHL, FedEx, UPS, TNT. For a large quantity of goods, shipping by sea or by air.

220v 380v 45A Portable Induction Heating Furnace For Melting Brass

Company Information

1.Professional induction melting furnace manufacture for more than 10 years.

2.All product have CE and ISO9001 certificate.

3.Last year sales revenue: 12 million RMB.

4.Export to India, Philipine and other countries

220v 380v 45A Portable Induction Heating Furnace For Melting Brass
